SEAC-63A

Key words:

SEAC-63A Mechanical

Category:

Aluminum Foil Container Machine

Message

Details

Drawing of structure

Technical Data

Model	SEAC-63A (1-4Cavities)
Nominal Force	630KN
Main Motor	11KW, SIEMENS
Stroke Range	150-300mm
Adjustable Speed	30-80times/min.
Number of Solenoid Value	10sets (2*5cacities)
Bed Plate Dimension	L1100xW920mm,2sets movable plate
Max.Mould Dimension	L1200xW850xH450mm
Number of Air Tank	5units
Press Lubricant Solution	Solid Lithium Grease, Manual Filling
Max. Width of Foil Passage	900mm
Feeder Tension Control	Automatic by Ultrasonic Sensor
Max.Diameter of Foil Roll	600-1500mm
Feeder Precision Control	±0.1mm, Mitsubishi Servo System
Stacker Belt Size	L2000xW900mm
Min.Size Stack Available	120x120mm
Products Stacking Size	One lane: L500xW800xH350mm Two lane: L500xW400xH350mm
	Three lane: L500xW250xH350mm Four lane: L500xW190xH350mm
Lifting System	SMC Servo Cylinder
Main Electric Brand	Mitsubishi,SMC,Schneider,OMRON,SIEMENS
Production Line Dimension	7100x2500x3500mm
Production Line Weight	11,500KGS

Description

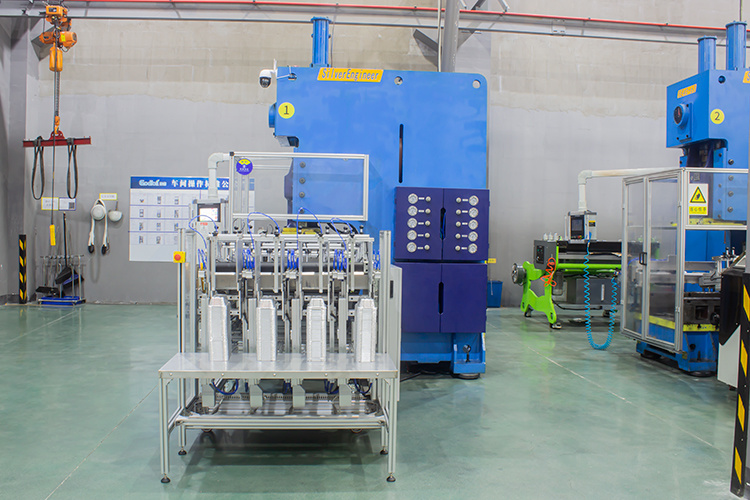

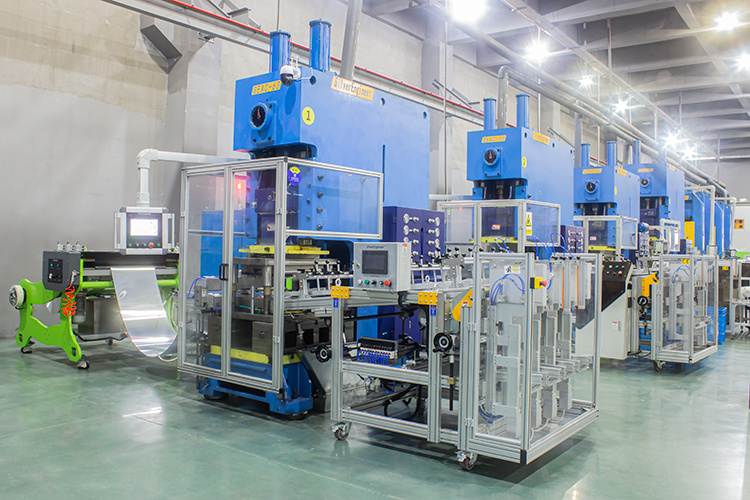

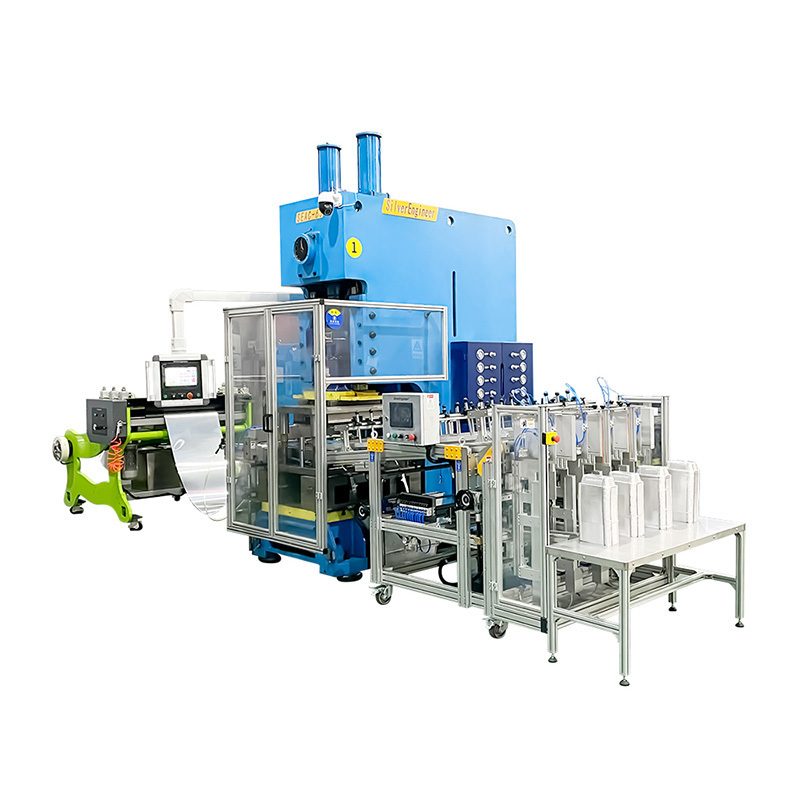

SEAC-63A adopts higher precision customized C-Type Six-Face Guide Rail Mechanical Press. Mainly use for Wrinkle Wall Container production. The software and hardware of the whole production line adopt Mechatronics design, which is beautiful and generous. The whole automatic production line is mainly composed of Feeder, Press, Stacker and Scrap System unites. The electrical control system of the whole production line is divided into two parts: the integrated electrical control cabinet of three units of Feeder, Press and Scrap System adopts independent system design, which is safe and anti-interference. The touch screen is hung on the left side of the Press, which is convenient for operation and does not occupy space; The electrical cabinet of the Stacker is installed on one side of the Stacker to independently control all parameter settings and operation. The PLC program logic of the whole production line is perfectly matched, which greatly improves the Production Efficiency of the whole machine and the Rationality of Program Control logic, and is more smart humanized.

Advantages

1.Adopt High Configuration Mitsubishi FX5U-64M PLC: stronger function, more stable and faster response, and 30 sets of mould processing parameters are stored and memorized.

2.Adopt Cantilever Rotatable Integrated Touch Screen Control Structure: more flexible, safer and less space than the traditional mobile console.

3.The worktable adopts split 8 groups of lifting steel balls: one worker can unload the mould and change the mould within 15 minutes, which is really fast and labor manpower saving.
