SP-30T

The Automatic Aluminum Foil Scrap Hydraulic Baler System is an indispensable part of the Automatic Aluminum Foil Container Production Line. Without the Scrap system, the production line will not be able to produce fully automatically, the speed of feeding production will be greatly reduced, and there will be messy scrap foil garbage around the equipment, which will seriously affect the safety and environment of production management. At the same time, the purchase price of uncompacted scrap foil is far lower than that of neatly compacted scrap foil.

Key words:

Mechanical Pop Up Foil Sheet Making Machine

Category:

Foil Scrap System

Message

Details

Technical Data

Model	SP-30T
Scrap Enter No.	2pcs for Two Production Line
Hydraulic Power	30TONS
Main Motor	5.5KW SIEMENS
Packaging Size	400x400x100~300mm
Feed Open Size	300x300mm
Control Way	Auto/Semi Auto
Hydraulic Units	Three Units
Out Bale Way	Auto Push
Separate Size	600mm
Electrical Appliance	Schneider / OMRON
PLC Brand	Mitsubishi
Machine Size	1500x1200x2500mm
Machine Weight	1500KGS

Description

Performance

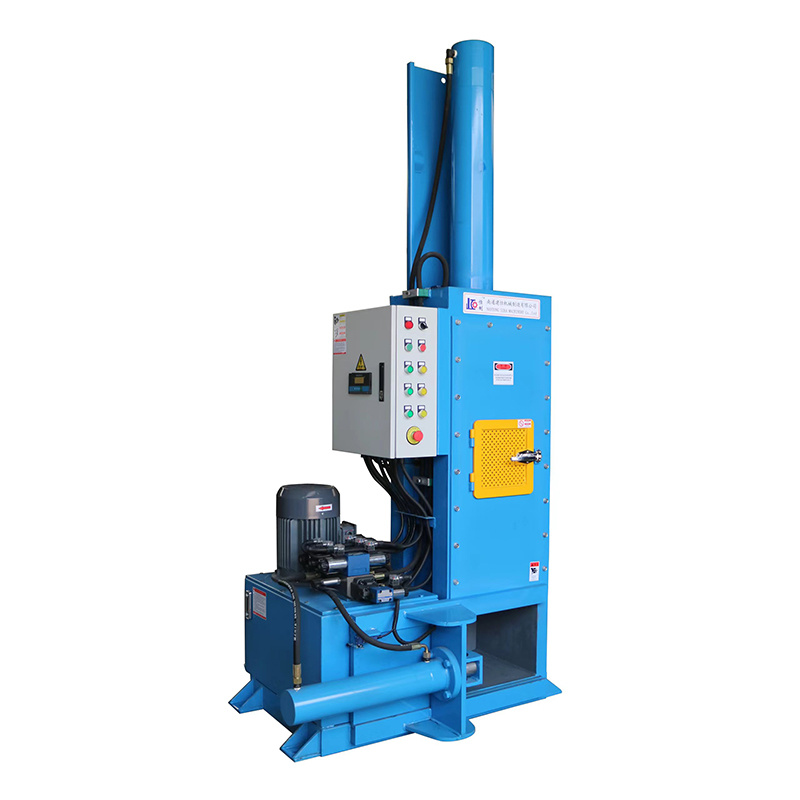

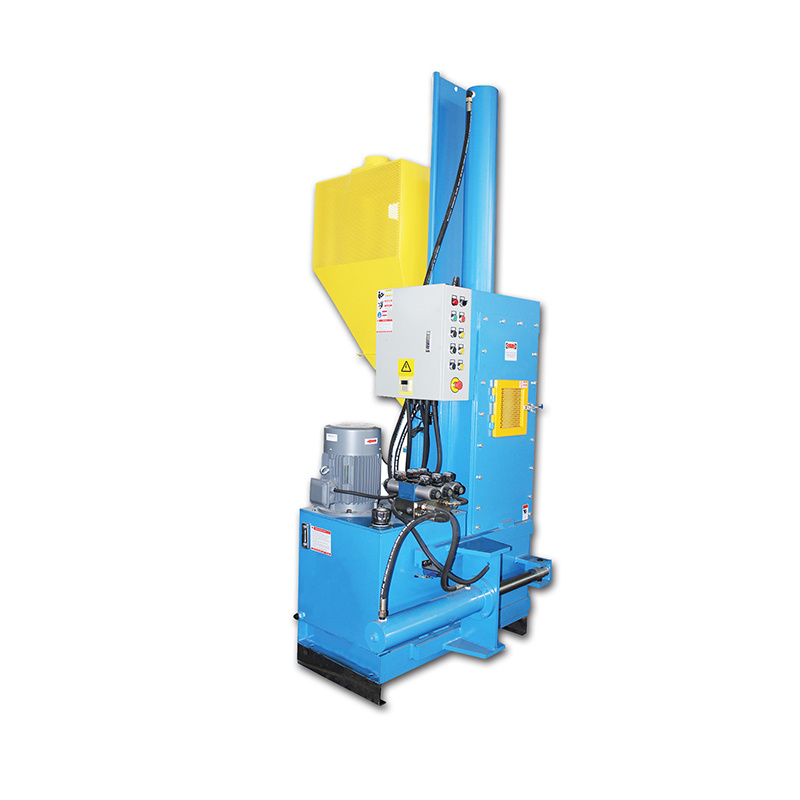

SP-30T model is a Vertical Hydraulic Baler with simple and convenient operation, stable operation and simple maintenance. It can be selected under automatic and manual working conditions. It is suitable for small projects. One set Baler can handle 1-2 sets of Aluminum Foil Container Production Lines.

SP-60T model is a Horizontal Hydraulic Baler with simple and convenient operation, stable operation and simple maintenance. It can be selected under automatic and manual working conditions. It is suitable for big projects. One set Baler can handle 6-10 sets of Aluminum Foil Container Production Lines.

Working principle

Working Principle: After the scrap aluminum foil is cut from mould, it is absorbed by the scrap sucker fan and cut into about 30cm length,then it enters the Hydraulic Baler Bin through the pipe; The Detection Sensors will start the main motor when Baler Bin is Full, then the main Hydraulic Cylinder will operate to compress the scrap aluminum foil in the bin until the pressure reaches the set pressure value; then the Baler will automatically open the bin door, and automatically push out the compressed Scrap Aluminum Foil Block,then Shut down the main motor after closing the bin door, and continue to wait for the next PLC command to restart.
