SEAC-80A

Key words:

Mechanical SEAC-80A

Category:

Aluminum Foil Container Machine

Message

Details

Drawing of structure

Technical Data

Model	SEAC-80A (3-6Cavities)
Nominal Force	800KN
Main Motor	18.5KW, SIEMENS
Stroke Range	150-260mm
Adjustable Speed	35-80times/min.
Number of Solenoid Value Connection with Adjustable Pressure	12sets (2*6cacities)
Bed Plate Dimension	L1480xW900mm,2sets movable plate
Max.Mould Dimension	L1450xW850xH500mm
Number of Air Tank	6units
Press Lubricant Solution	Liquid Hydraulic Oil, Automatic Cycle
Max. Width of Foil Passage	1220mm
Feeder Tension Control	Automatic by Ultrasonic Sensor
Max.Diameter of Foil Roll	600-1500mm
Feeder Precision Control	±0.1mm, Mitsubishi Servo System
Stacker Belt Size	L2000xW1300mm
Min.Size Stack Available	100x100mm
Products Stacking Size	Three lane: L600xW350xH350mm Four lane: L600xW250xH350mm
	Five lane: L600xW210xH350mm Six lane: L600xW170xH350mm
Lifting System	SMC Servo Cylinder
Main Electric Brand	Mitsubishi,SMC,Schneider,OMRON,SIEMENS
Production Line Dimension	8000x2500x3650mm

Description

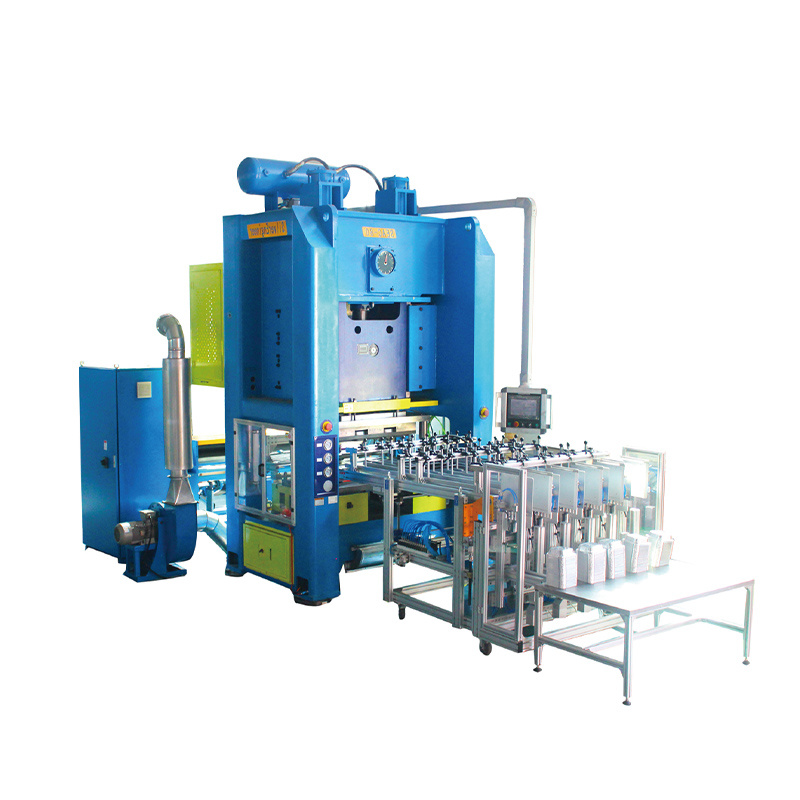

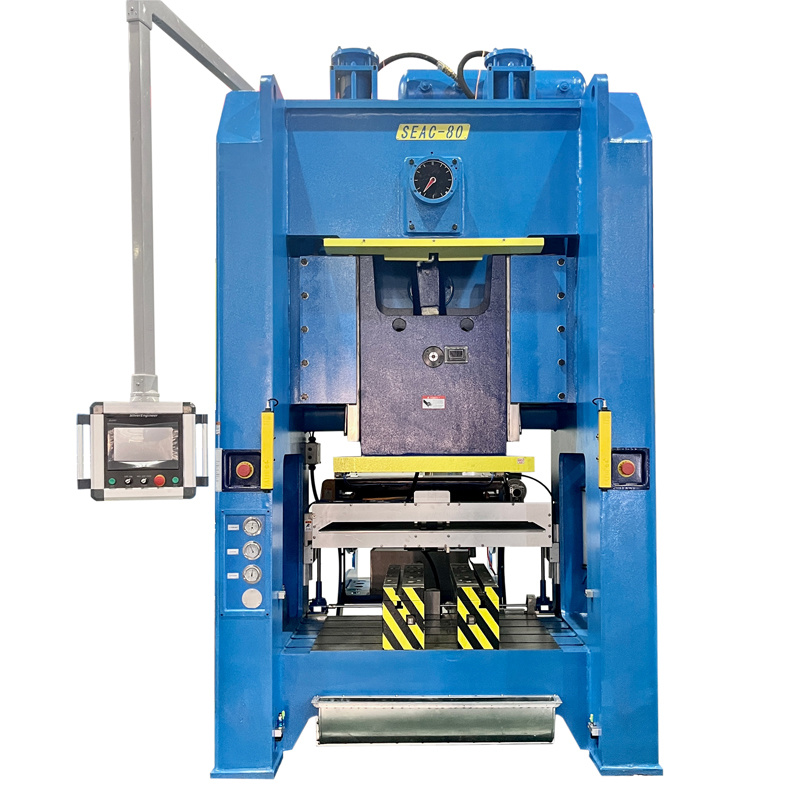

SEAC-80A adopts higher precision customized H-Type Eight-Face Guide Rail Mechanical Press. Mainly use for Wrinkle Wall Container production. The software and hardware of the whole production line adopt Mechatronics design, which is beautiful and generous. The whole automatic production line is mainly composed of Feeder, Press, Stacker and Scrap System unites. The electrical control system of the whole production line is divided into two parts: the integrated electrical control cabinet of three units of Feeder, Press and Scrap System adopts independent system design, which is safe and anti-interference. The touch screen is hung on the left side of the Press, which is convenient for operation and does not occupy space; The electrical cabinet of the Stacker is installed on one side of the Stacker to independently control all parameter settings and operation. The PLC program logic of the whole production line is perfectly matched, which greatly improves the Production Efficiency of the whole machine and the Rationality of Program Control logic, and is more smart humanized.

Advantages

1.Aluminum Foil Feeding adopts Servo System: Perfect performance for aluminum foil materials with different thickness and big width to complete feeding quickly and higher accurately. The curve output torque makes the aluminum foil stable without shaking.

2.Press Adopted Automatic Circulation Lubrication System: the progressive lubricating oil distributor is equipped with Lubrication Fault Detection Switch to ensure sufficient and uniform lubrication , avoid damage the guide rail during oil-free operation.

3.The Highly Sensitive and Reliable Italian OMPI Dry Clutch and Japanese TACO Double Solenoid Valve are adopted to ensure the accuracy and safety of timely stop of the sliding block of the Press.
