Aluminum Foil Feeder

There are four models of Aluminum Foil Feeder: Common Version C, Common Embossing Version E, Smooth Wall Version S and Flexo Flagship Version P. SEAC production line is equipped with Common Version Feeder, SEAE production line is equipped with Common Embossing Version Feeder, SEAS production line is equipped with Smooth Wall Version Feeder, and SEAP production line is equipped with Flexo Flagship Version Feeder.

Key words:

Mechanical Aluminum Foil Feeder

Category:

Foil Feeding Machine

Message

Details

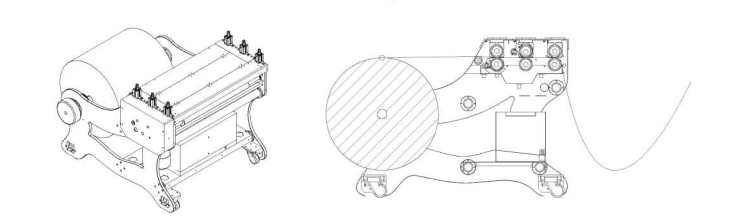

Drawing of structure

Technical Data

Model	Common Version Feeder C Smooth Wall Version Feeder S
Aluminum Foil Type	Non-Lubricated and Lubricated Foil Material	Non-Lubricated and Lubricated Foil Material
Aluminum Container Type	Wrinkle Wall Container	Wrinkle Wall Container and Smooth Wall Container
Oil Type	Thin Oil,Fresh Point 40-60°C	Thick Oil,Fresh Point No Limited
Oil Tank Position	Opened Oil Tank on Feeder	Closed Oil Tank under Feeder
Oil Coating Type	Foil Immersed Coating	Foil Roller Coating
Oil Filling Wa	Semi Auto Refill	Automatic Refill
Oil Coating Quantity	1-2g/sqm	300-500mg/sqm
Oil Polluted	No Clean Solution	Auto Filtrate and Cycle Clean
Number of Rollers	2sets	6sets
Feeding Wrinkle Performance	Wrinkle for Small Thickness	No wrinkle Problem
