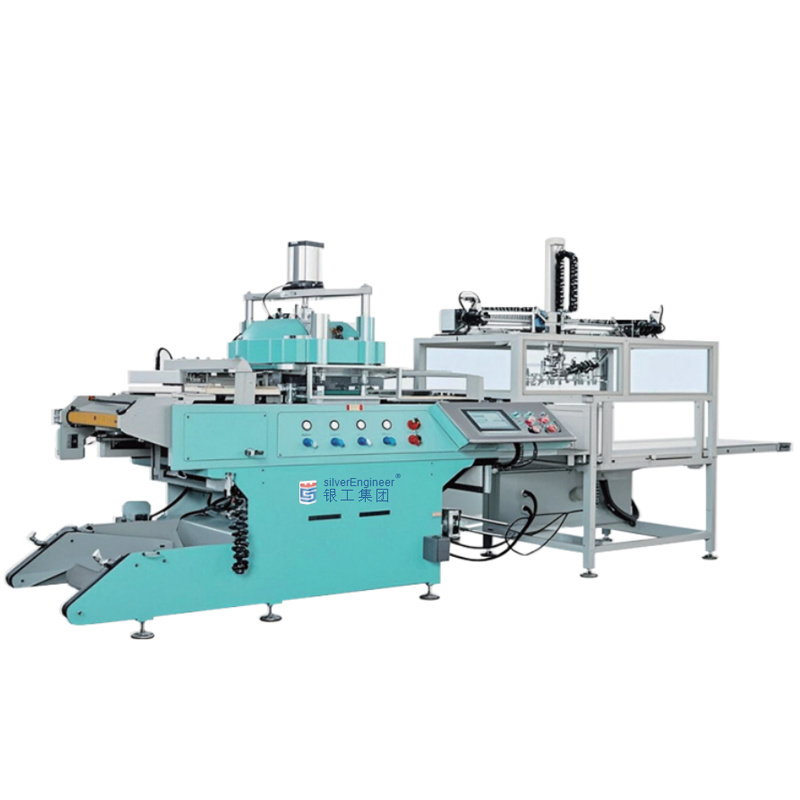

Automatic Plastic LidThermoforming Machine SEPL-5060/5575
Key words:
Mechanical SEPL-5060/5575
Details
Technical Data
| Model | SEPL-5060 | SEPL-5575 |
Max.Forming Area | 510x620mm | 550x750mm |
Max.Forming Depth | 100mm | 120mm |
Material Thickness Range | 0.10-1.0mm | 0.10-1.0mm |
Knife Length | APET:6800mm/OPS:9000mm | APET:8000mm/OPS:11000mm |
Air Pressure | 0.7Mpa | 0.7Mpa |
Air Consumption | 1500L/min | 1800L/min |
Water Consumption | 5L/min | 8L/min |
Power Consumption | 7.5kw/h(Approximate) | 10kw/h(Approximate) |
Total Heating power | 24kw | 30kw |
Total Motor power | 8kw | 9kw |
Power Supply | AC 380V±15V 50/60HZ | AC 380V±15V 50/60HZ |
Production speed | 600-1200Cycles/h | 600-1200Cycles/h |
Max. Material Roll Diameter | 710mm | 800mm |
Max. Sheet Width | 680mm | 810mm |
Dimensions | Machine:2950*1550*2350mm | 5000*1750*2500mm |
Weight | 3500kg | 4800kg |
Description
This series of machines is an integrated design of mechanics, electricity and pneumatics, with a PLC control system and touch screen operation. It is a plastic thermoforming equipment that can complete the processes of sheet feeding, heating, forming, cutting and stacking in one go. It is applicable to thermoplastic materials such as BOPS, PS, APET, PVC, PLA, etc., and can be used to form various products such as LIDS, boxes, plates, trays, and connected boxes, such as lunch box LIDS, sushi LIDS, paper bowl LIDS, aluminum foil LIDS, mooncake trays, pastry trays, food trays, supermarket trays, oral liquid trays, and medical injection trays.
Performance
The Production Process:
1.The servo drive works to achieve smooth and energy-saving effects
2.Memory storage system
3.Switch of working mode
4.Provide intelligent diagnostic analysis
5.In-die cutting ensures the consistency and accuracy of product edge cutting
6.Low energy consumption and high utilization rate
7.The mechanical hand rotates 180 degrees
FAQ
A
Please fill out the online inquiry form. Our professional sales team will answer your questions and provide project consultation tailored to your needs.
A
Yes. Silver Engineer Group provides complete solutions for the aluminum foil packaging industry. From production lines and molds to scrap balers, rewinding machines, and auxiliary equipment, we support your business every step of the way.
A
Yes. Operation and maintenance training are included.
A
Our machine can produce wrinkle wall containers, smooth wall containers, trays, lunch boxes, baking containers, airline containers.
A
One machine supports multiple sizes with interchangeable molds, and customized mold solutions are available based on your drawings, samples, or market needs.
A
The user-friendly touch screen stores multiple mold parameters, allowing one operator to complete mold changes quickly within 15–30 minutes.
A
We provide CE, ISO9001, SGS, ROHS and other related certifications.
A
Yes. We provide online guidance and overseas engineer support.
