ABOUTSE was founded in 2010 located in Shanghai. In 2014 moved to Jiashan, Zhejiang Province. We were committed to providing overall solutions for the transformation and upgrading of the Global Aluminum Foil Packaging Industry in the New Era.
-
MACHINEAluminum Foil Container Machine Foil Feeding Machine Foil Scrap System Foil Lid Cutting Machine Foil Rolls Machine Pop Up Sheet Machine Paper Sheet CuttingMachine Paper Die Cutting MachineWith 4 Moulds Automatic Plastic LidThermoforming MachineCommon Version Feeder C SmoothWall Version Feeder S Flagship Printing Feeder P Embossing Version Feeder E
Mechanical equipment
Details
Technical Data
|
Model |
SEAC-900 (1-3Cavities) |
|
Nominal Force |
550KN |
|
Main Motor |
7.5KW, SIEMENS |
|
Stroke Range |
180mm |
|
Adjustable Speed |
30-80times/min. |
|
Number of Solenoid Value |
10sets (2*5cacities) |
|
Bed Plate Dimension |
L920xW600mm,2sets movable plate |
|
Max.Mould Dimension |
L950xW580xH450mm |
|
Number of Air Tank |
5units |
|
Press Lubricant Solution |
Solid Lithium Grease, Manual |
|
Max. Width of Foil Passage |
Filling 650mm |
|
Feeder Tension Control |
Automatic by Ultrasonic Sensor |
|
Max.Diameter of Foil Roll |
600-1500mm |
|
Feeder Precision Control |
±0.1mm, Mitsubishi Servo System |
|
Stacker Belt Size |
L1500xW800mm |
|
Min.Size Stack Available |
120x120mm |
|
Products Stacking Size |
One lane: L380xW650xH350mm Two lane: L380xW350xH350mm |
|
Three lane: L380xW175xH350mm |
|
|
Lifting System |
SMC Servo Cylinder |
|
Main Electric Brand |
Mitsubishi,SMC,Schneider,OMRON,SIEMENS |
|

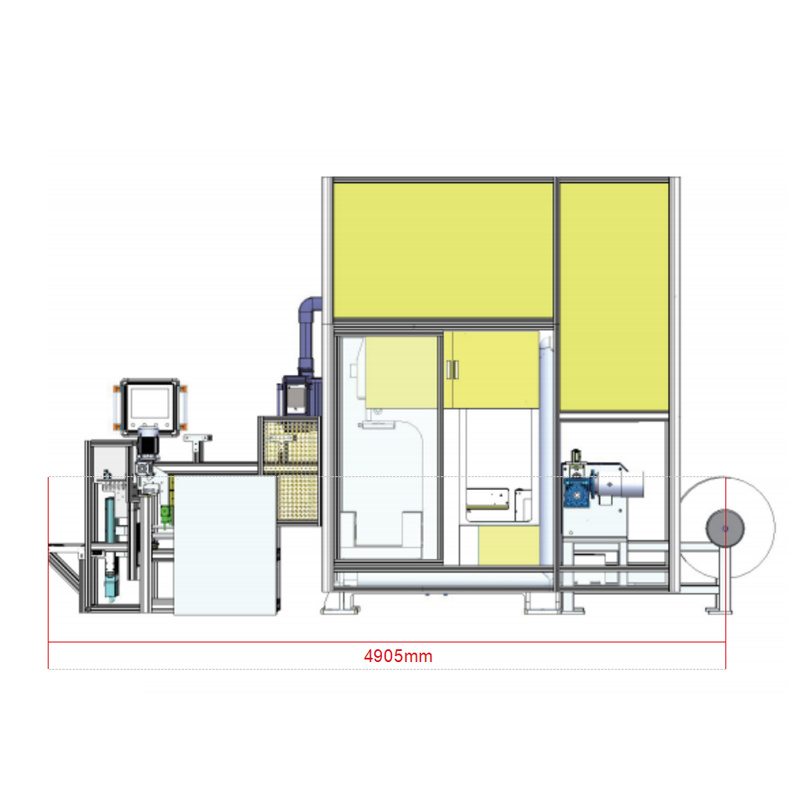

Production Line Dimension |
5800x1450x3000mm |
|
Production Line Weight |
8,500KGS |
