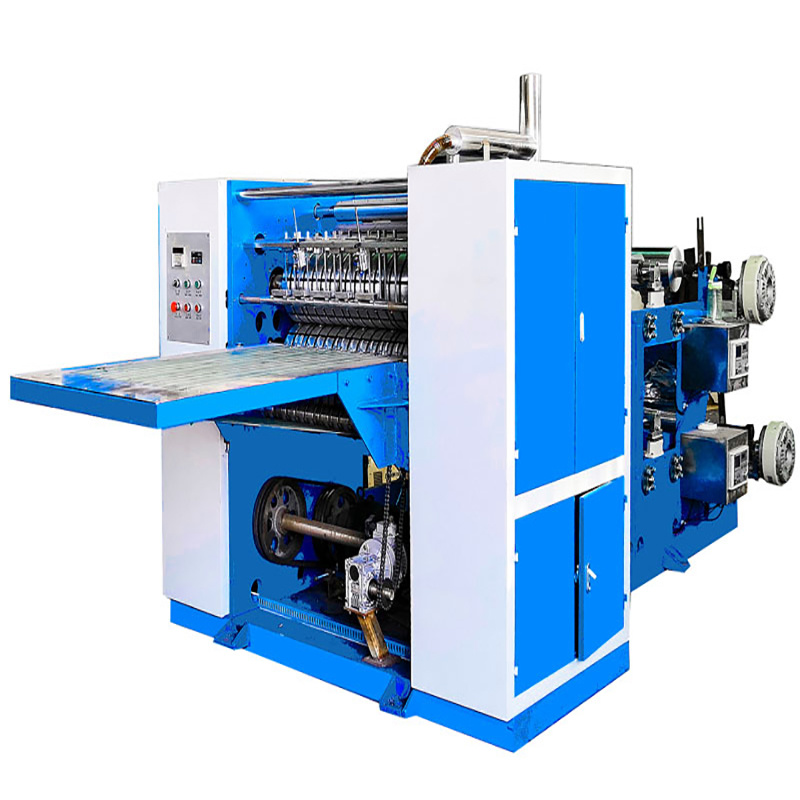

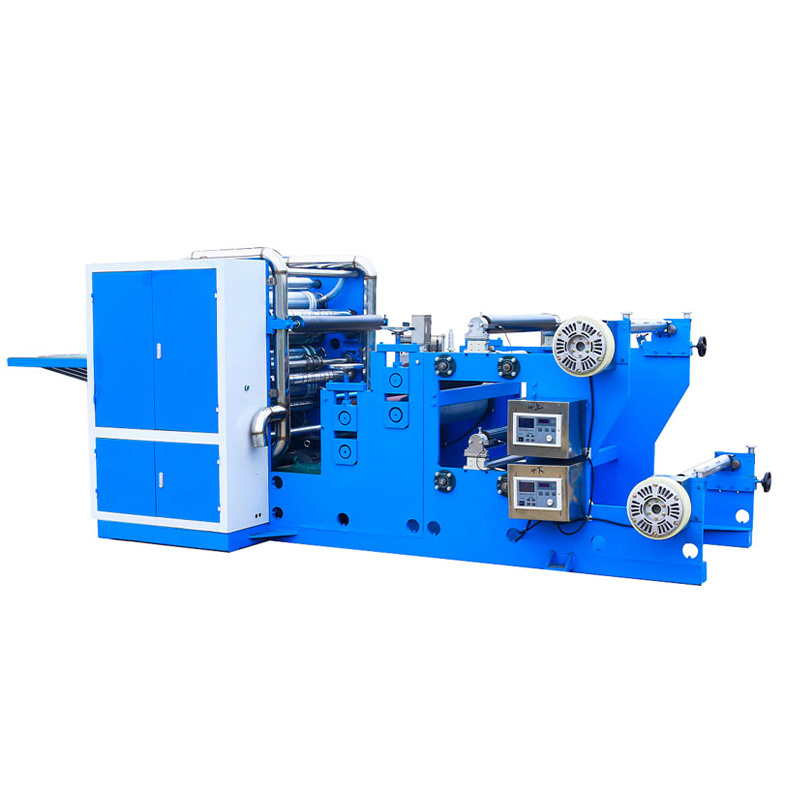

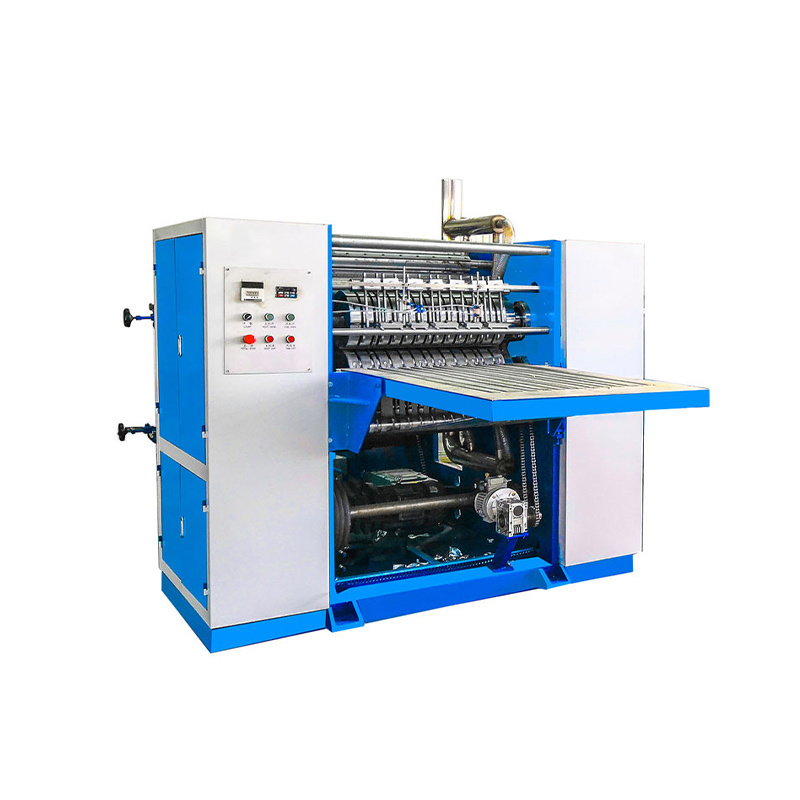

Pop Up Foil Sheet Making Machine

The Automatic Pop Up Foil Sheets Machine model SEPS-680/980 which has been specifically studied for producing Pre-Cut, Interfold, Pop Up Foil Sheet of Aluminum Foil. Thanks for it’s compact design and the programmable working cycle, it can producing non-stop with two/three/four lanes and always offers great production performances by the simple operation. If connect with Automatic Sheets Box Packing Machine could setup a full automatic production line.

Key words:

Mechanical Pop Up Foil Sheet Making Machine

Category:

Pop Up Sheet Machine

Message

Details

Technical Data

Model	SEPS-680
Raw Material	Aluminum Foil
Material Thickness	12-20micron
Mother Roll Core Diameter	76mm
Max Mother Roll Diameter	Max.800mm
Mother Roll Available Width	Max.610mm
(L * W) Sheet Open Size(L*W)	273x304.8mm(10 3/4”x 12”)
(L * W) Folded Sheet Size(L*W)	135x304.8mm
Fold Shape	V shape interlocking, 3-5mm fold angle
Speed for 304.8mm Sheet	400-500pcs/min*2lanes
Speed for 228mm Sheet	400-500pcs/min*2lanes
Installed Power	27KW(22kw Roots Vacuum Pump +4kw Main Motor+lkwTension)
Power Supply	380V, 50Hz, 3ph+N+E
Air Pressure	0.5-0.8Mpa, 300L/min.
Dimensions L x W x H	4400x1800x2200mm
Net Weight	5500kg

Description

Advantages

The Production Process:
•Load Jumbo Roll on Two Sets Aluminum Foil Unwinding Unit
•Constant Tension Adjustment
•Embossing Unit s Slitting Unit
•Vacuum Adsorption Folding(V interrupted)
•Finished Pop Up Sheet Collecting and Pushing Out to Belt
•Counting (Two design available: Cylinder counting and Sensor counting)
•Press Counted Sheets Unit
