Mechanical equipment
SEPC-930
Key words:
Category:
Details
Technical Data
|
Model |
SEPC-930 |
|
Cutting Width |
940mm |
|
Cutting Length |
940mm |
|
Cutting Height |
120mm |
|
Bench Extension Length |
610mm |
|
Table Height |
930mm |
|
Motor Power |
3KW |
|
Maximum Paper Pressure |
3500daN |
|
Cutting Speed |
42times/min |
|
Dimensions L x W x H |
2300x2000x1500mm |
|
Dimensions L x W x H |
2400x1420x1700mm |
|
Net Weight |
2300kg |
Description

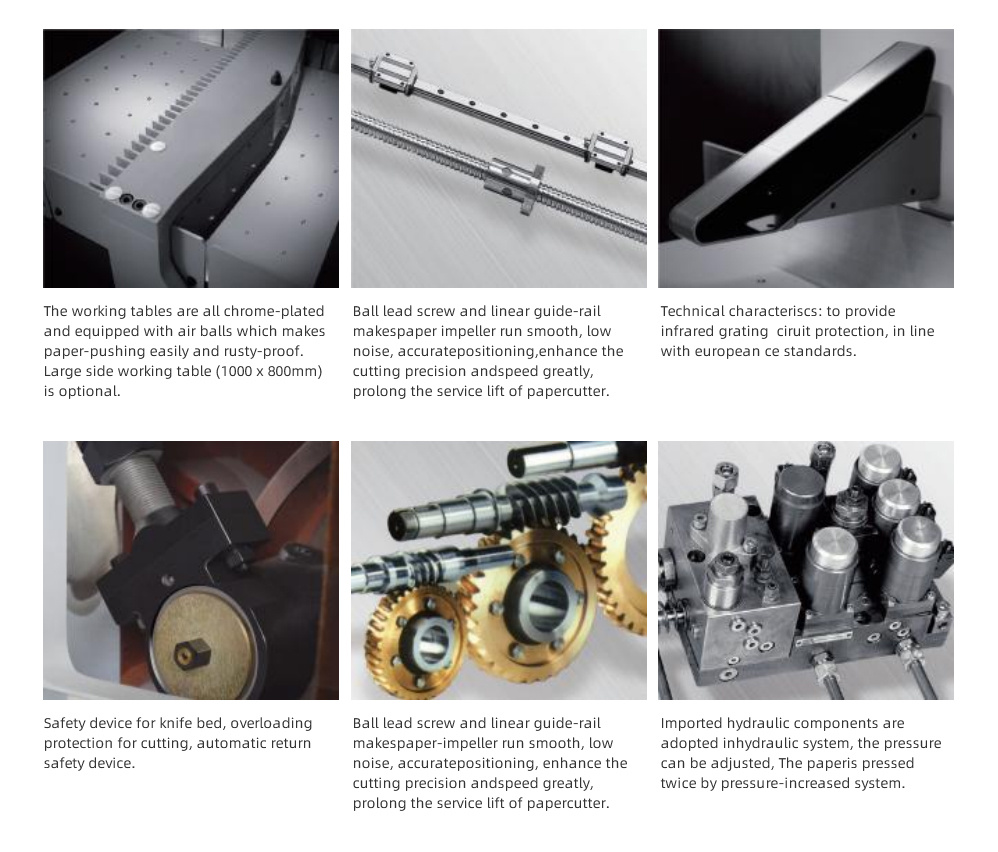

This paper cutter is a device used to deal with the needs of paper cutting after printing. It is composed of dual guide overall slotless table with two-way linear guide rail and ball screw, plus infrared protection system (optional safety guard), the use of hydraulic system to make the production preparation time is shorter, cutting accuracy is higher, more labor saving, safer operation.
Performance
