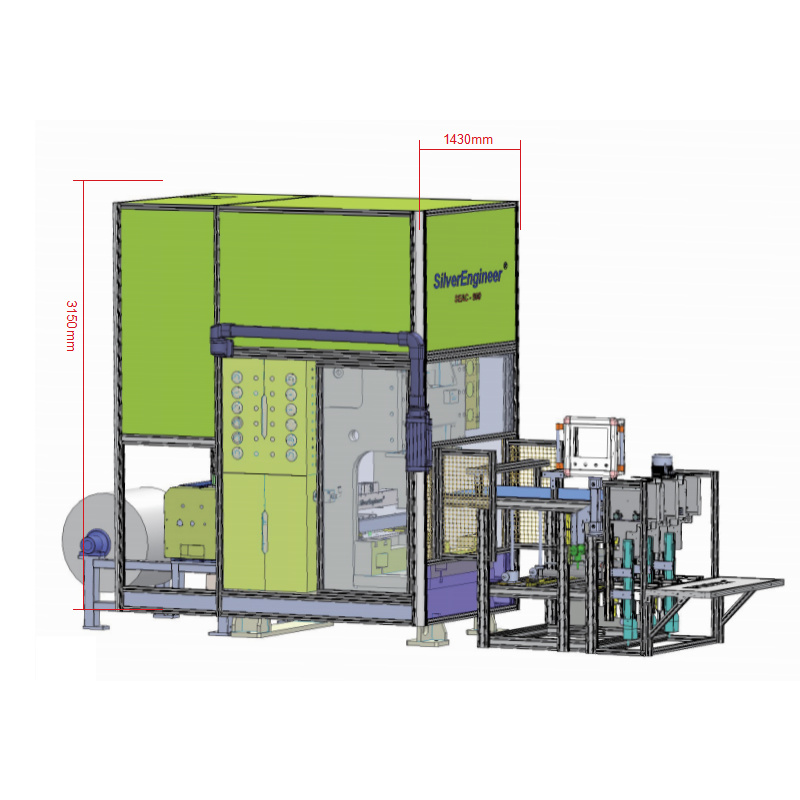

SEAC-900

Key words:

Mechanical SEAC-900

Category:

Details

Model	SEAC-900 (1-3Cavities)
Nominal Force	550KN
Main Motor	7.5KW, SIEMENS
Stroke Range	180mm
Adjustable Speed	30-80times/min.
Number of Solenoid Value	10sets (2*5cacities)
Bed Plate Dimension	L920xW600mm,2sets movable plate
Max.Mould Dimension	L950xW580xH450mm
Number of Air Tank	5units
Press Lubricant Solution	Solid Lithium Grease, Manual
Max. Width of Foil Passage	Filling 650mm
Feeder Tension Control	Automatic by Ultrasonic Sensor
Max.Diameter of Foil Roll	600-1500mm
Feeder Precision Control	±0.1mm, Mitsubishi Servo System
Stacker Belt Size	L1500xW800mm
Min.Size Stack Available	120x120mm
Products Stacking Size	One lane: L380xW650xH350mm Two lane: L380xW350xH350mm
	Three lane: L380xW175xH350mm
Lifting System	SMC Servo Cylinder
Main Electric Brand	Mitsubishi,SMC,Schneider,OMRON,SIEMENS

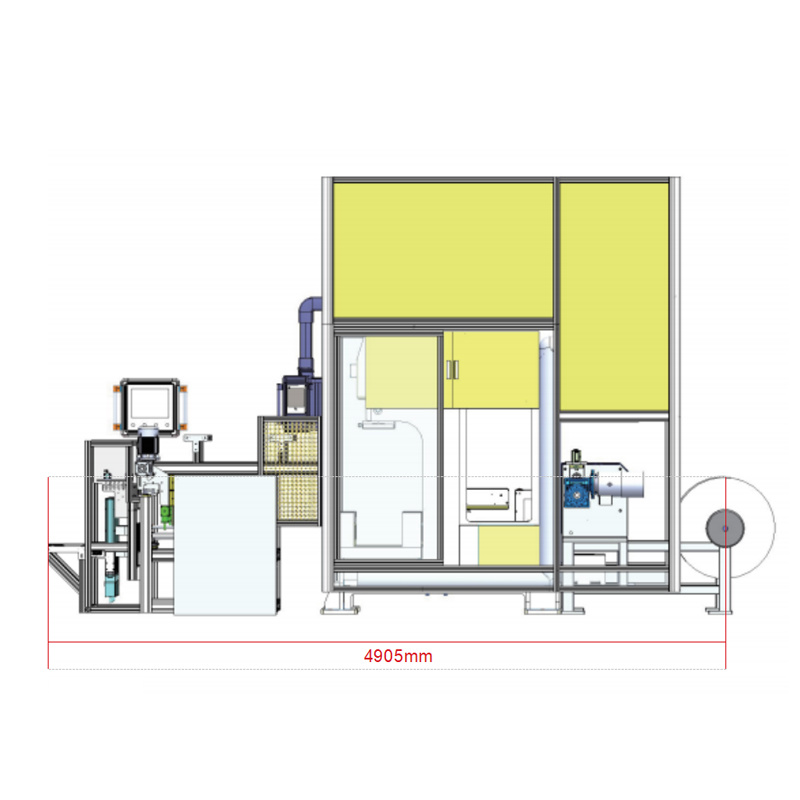

Production Line Dimension	5800x1450x3000mm
Production Line Weight	8,500KGS
